Ref.:43512-22051
Front Axle
Height : 28 mm
Diameter : 248 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 18 mm
Minimum Thickness : 17 mm
Num. of holes : 4
Solid or Vented : V
Weight : 3.9 kg -
Front Axle
Height : 28 mm
Diameter : 248 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 21 mm
Num. of holes : 4
Solid or Vented : V
Weight : 4.7 kg -
Ref.:43512-22080
Front Axle
Height : 40 mm
Diameter : 248 mm
Centering Diameter : 76 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 21 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5 kg -
Front Axle
Height : 40.1 mm
Diameter : 271.8 mm
Centering Diameter : 76.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22.4 mm
Minimum Thickness : 21.1 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.6 kg -
Ref.:43512-22110
Front Axle
Height : 68.1 mm
Diameter : 278.9 mm
Centering Diameter : 60.2 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.4 mm
Minimum Thickness : 20.8 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.5 kg -

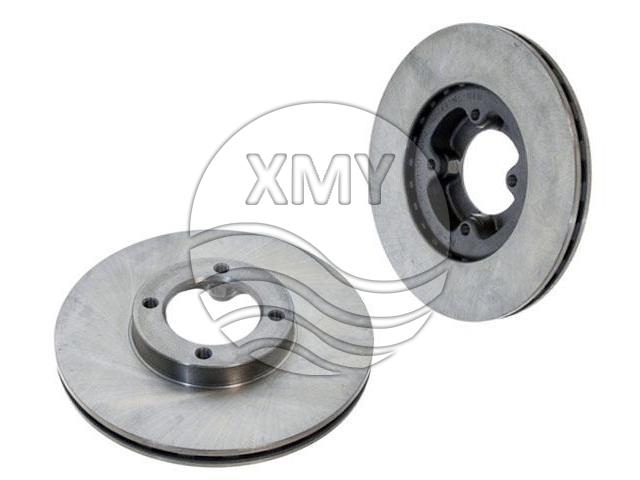

Ref.:43512-28050
Front Axle
Height : 41.7 mm
Diameter : 255 mm
Centering Diameter : 74.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 20.1 mm
Minimum Thickness : 19 mm
Num. of holes : 4
Solid or Vented : V
Weight : 5.15 kg -

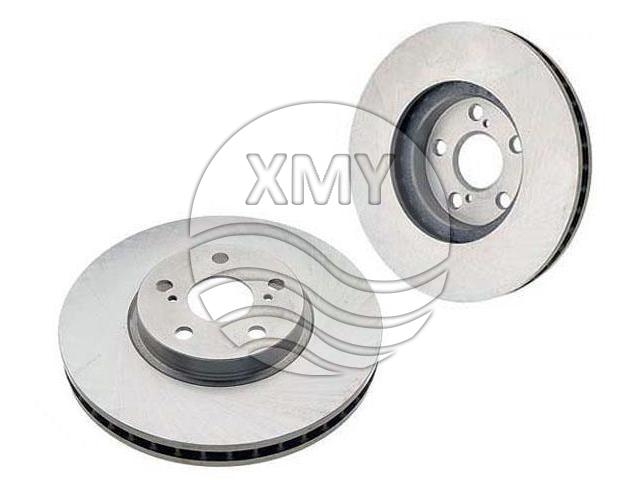

Ref.:43512-28060
Front Axle
Height : 52.6 mm
Diameter : 255 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.5 kg -

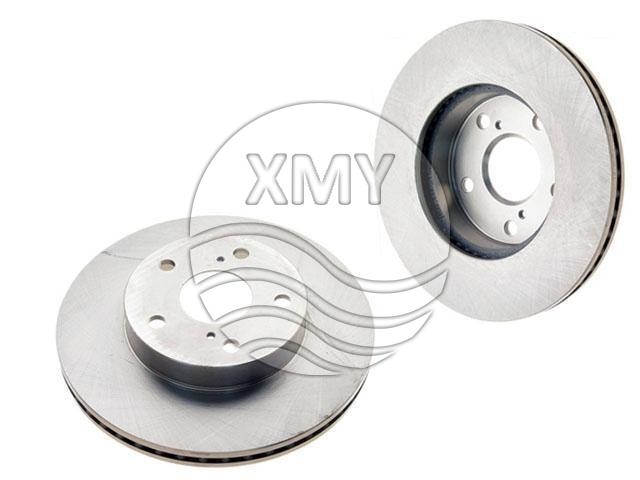

Ref.:43512-28080
Front Axle
Height : 52.8 mm
Diameter : 279 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 22.0 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.5 kg -
Ref.:43512-28100
Front Axle
Height : 52.8 mm
Diameter : 271 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 25.0 mm
Minimum Thickness : 23 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.3 kg -

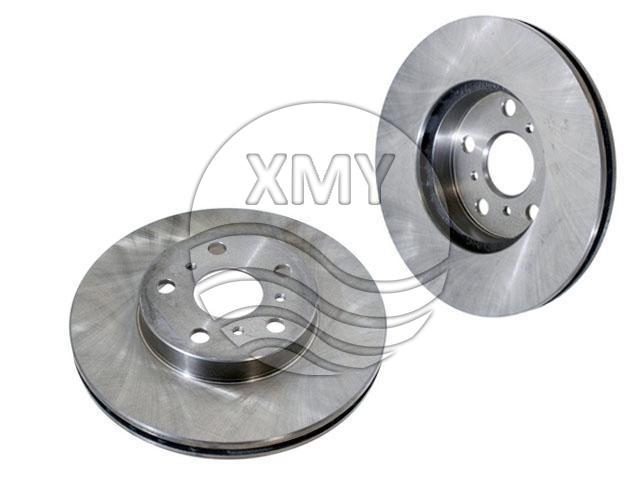

Ref.:43512-32090
Front Axle
Height : 48 mm
Diameter : 255.2 mm
Centering Diameter : 54 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 21 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5 kg
