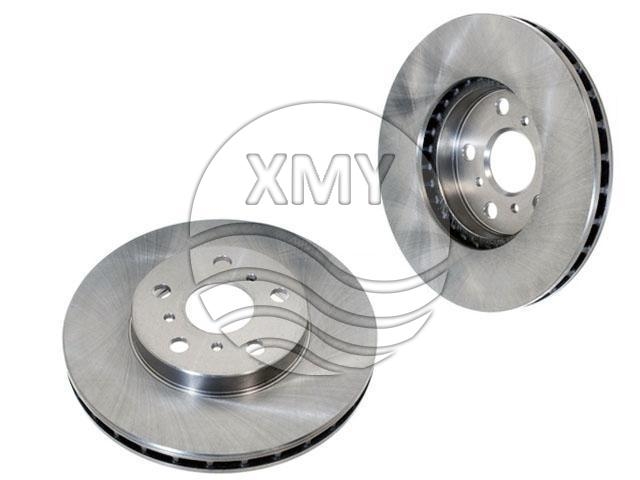

Ref.:43512-32120
Front Axle
Height : 48 mm
Diameter : 255.2 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 24.9 mm
Minimum Thickness : 24 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.04 kg -

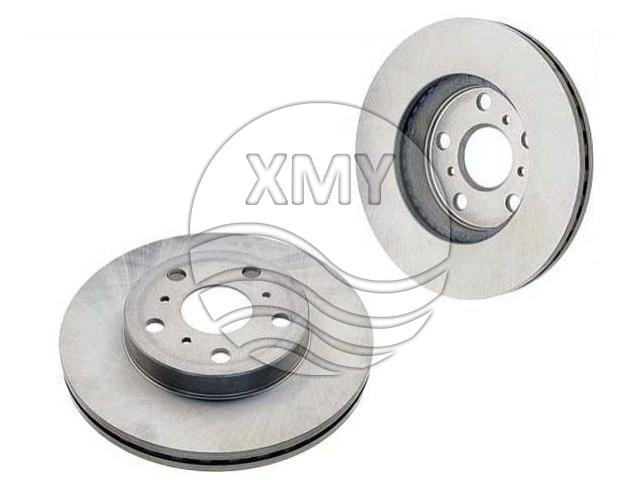

Ref.:43512-32140
Front Axle
Height : 46 mm
Diameter : 243 mm
Centering Diameter : 54 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 21 mm
Num. of holes : 5
Solid or Vented : V
Weight : 4.9 kg -
Front Axle
Height : 48.4 mm
Diameter : 277 mm
Centering Diameter : 54 mm
Pitch Circle Diameter : 100 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 24 mm
Num. of holes : 5
Solid or Vented : V
Weight : 6.6 kg -

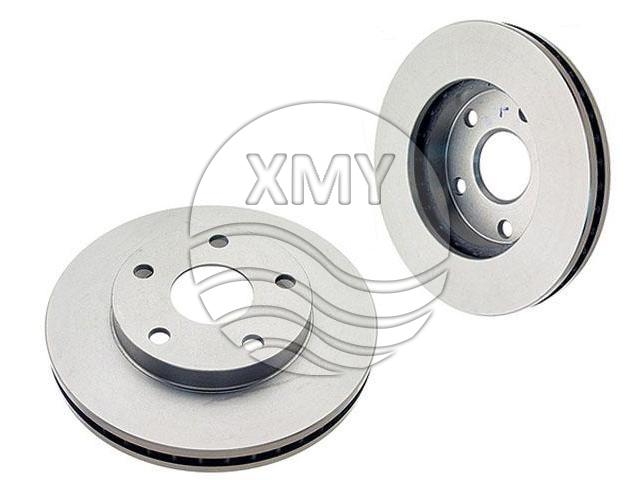

Ref.:43512-33020
Front Axle
Height : 49 mm
Diameter : 255 mm
Centering Diameter : 62 mm
Pitch Circle Diameter : 114.3 mm
Brake Disc Thickness : 28.0 mm
Minimum Thickness : 26 mm
Num. of holes : 5
Solid or Vented : V
Weight : 5.9 kg -
Front Axle
Height : 45.2 mm
Diameter : 279.4 mm
Pitch Circle Diameter : 119 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 23 mm
Num. of holes : 6
Solid or Vented : V -

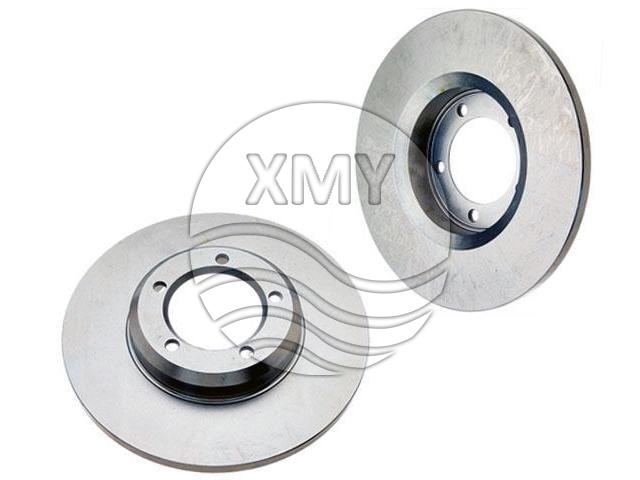

Front Axle
Height : 42 mm
Diameter : 266 mm
Centering Diameter : 79 mm
Pitch Circle Diameter : 104 mm
Brake Disc Thickness : 12.5 mm
Minimum Thickness : 11.5 mm
Num. of holes : 5
Solid or Vented : S
Weight : 4.55 kg -

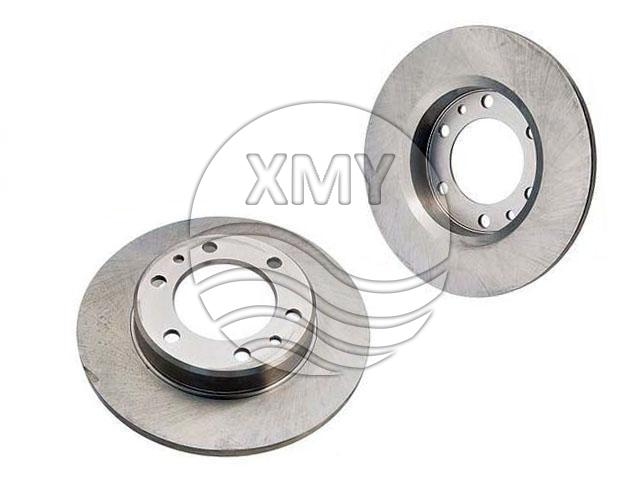

Ref.:43512-35070
Front Axle
Height : 48 mm
Diameter : 301.8 mm
Centering Diameter : 100.1 mm
Pitch Circle Diameter : 139.7 mm
Brake Disc Thickness : 12.4 mm
Minimum Thickness : 11.4 mm
Num. of holes : 6
Solid or Vented : S
Weight : 5.8 kg -

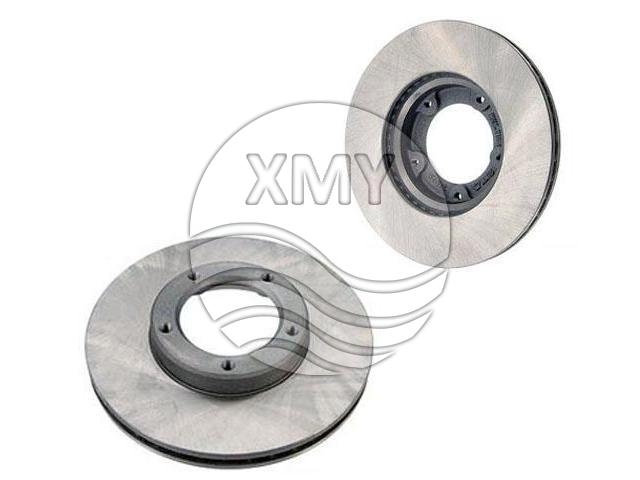

Ref.:43512-35081
Front Axle
Height : 46.1 mm
Diameter : 248.1 mm
Centering Diameter : 84 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 21 mm
Num. of holes : 5
Solid or Vented : V
Weight : 4.7 kg -
Front Axle
Height : 45.5 mm
Diameter : 256.5 mm
Centering Diameter : 84 mm
Brake Disc Thickness : 25 mm
Minimum Thickness : 24 mm
Num. of holes : 6
Solid or Vented : V
Weight : 5.5 kg -
Front Axle
Height : 46 mm
Diameter : 254 mm
Centering Diameter : 84.1 mm
Pitch Circle Diameter : 110 mm
Brake Disc Thickness : 22 mm
Minimum Thickness : 20 mm
Num. of holes : 5
Solid or Vented : V
Weight : 4.9 kg
